基于Helm部署kube

概述

GitHub地址：https://github.com/prometheus-operator/prometheus-operator
Helm仓库：https://prometheus-community.github.io/helm-charts

安装prometheus-operator前置条件：

确保你有一个k8s集群

安装k8s集群可参考：使用sealos快速搭建kubernetes集群！！！

确保你安装了Helm

安装Helm可参考：安装Helm

实操

创建SC

我这里以NFS作为存储

配置NFS参考这篇文章：https://www.cnblogs.com/huangSir-devops/p/18802386
创建SC参考：https://www.cnblogs.com/huangSir-devops/p/18871414#_label4_2

创建grafana的存储

# 配置NFS [root@master01 ~/volumes]# mkdir -p /data/nfs/grafana [root@master01 ~/volumes]# echo '/data/nfs/grafana 10.0.0.0/24(rw,sync,no_root_squash,no_subtree_check)' >> /etc/exports [root@master ~/volumes]# exportfs -ra # 定义资源清单 [root@master01 ~/volumes]# cat grafana-sc.yaml apiVersion: storage.k8s.io/v1 kind: StorageClass metadata: name: grafana-sc # StorageClass名称，PVC通过该名称引用此存储类 provisioner: nfs.csi.k8s.io # 指定使用NFS CSI驱动作为存储供给器 parameters: # 传递给NFS CSI驱动的参数 server: 10.0.0.30 # NFS服务器的IP地址 share: /data/nfs/grafana # NFS服务器上的共享目录路径 # csi.storage.k8s.io/provisioner-secret is only needed for providing mountOptions in DeleteVolume # csi.storage.k8s.io/provisioner-secret-name: "mount-options" # csi.storage.k8s.io/provisioner-secret-namespace: "default" reclaimPolicy: Retain # 回收策略：当PVC被删除时，PV保留不删除 volumeBindingMode: Immediate # 卷绑定模式：立即绑定，不需要等待Pod调度 allowVolumeExpansion: true # 允许卷扩容：支持通过修改PVC请求更大容量 [root@master ~]# kubectl apply -f grafana-sc.yaml [root@master ~]# kubectl get sc NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE grafana-sc nfs.csi.k8s.io Retain Immediate true 3m44s

创建Prometheus的存储

# 配置NFS [root@master01 ~/volumes]# mkdir -p /data/nfs/prometheus [root@master01 ~/volumes]# echo '/data/nfs/prometheus 10.0.0.0/24(rw,sync,no_root_squash,no_subtree_check)' >> /etc/exports [root@master ~/volumes]# exportfs -ra [root@master01 ~/volumes]# cat prometheus-sc.yaml apiVersion: storage.k8s.io/v1 kind: StorageClass metadata: name: prometheus-sc # StorageClass名称，PVC通过该名称引用此存储类 provisioner: nfs.csi.k8s.io # 指定使用NFS CSI驱动作为存储供给器 parameters: # 传递给NFS CSI驱动的参数 server: 10.0.0.30 # NFS服务器的IP地址 share: /data/nfs/prometheus # NFS服务器上的共享目录路径 # csi.storage.k8s.io/provisioner-secret is only needed for providing mountOptions in DeleteVolume # csi.storage.k8s.io/provisioner-secret-name: "mount-options" # csi.storage.k8s.io/provisioner-secret-namespace: "default" reclaimPolicy: Retain # 回收策略：当PVC被删除时，PV保留不删除 volumeBindingMode: Immediate # 卷绑定模式：立即绑定，不需要等待Pod调度 allowVolumeExpansion: true # 允许卷扩容：支持通过修改PVC请求更大容量 [root@master ~/volumes]# kubectl apply -f prometheus-sc.yaml storageclass.storage.k8s.io/prometheus-sc created [root@master ~/volumes]# kubectl get sc NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE grafana-sc nfs.csi.k8s.io Retain Immediate true 3h40m nfs-csi nfs.csi.k8s.io Delete Immediate true 175m prometheus-sc nfs.csi.k8s.io Retain Immediate true 4s

配置operator

添加仓库

# 添加社区版仓库 [root@master ~]# helm repo add prometheus-community https://prometheus-community.github.io/helm-charts [root@master ~]# helm repo update [root@master ~]# helm pull helm pull prometheus/kube-prometheus-stack --version 73.2.0 # 如果上面因为网络报错，可使用下面的 [root@master ~]# wget https://github.com/prometheus-community/helm-charts/releases/download/kube-prometheus-stack-73.2.0/kube-prometheus-stack-73.2.0.tgz

解压

[root@master ~]# tar -xvf kube-prometheus-stack-73.2.0.tgz [root@master ~]# ll kube-prometheus-stack total 228 drwxr-xr-x 4 root root 4096 Jun 7 15:27 ./ drwx------ 31 root root 4096 Jun 7 15:27 ../ -rw-r--r-- 1 root root 458 Jun 6 01:22 .helmignore -rw-r--r-- 1 root root 615 Jun 6 01:22 Chart.lock -rw-r--r-- 1 root root 2571 Jun 6 01:22 Chart.yaml -rw-r--r-- 1 root root 19869 Jun 6 01:22 README.md drwxr-xr-x 7 root root 4096 Jun 7 15:27 charts/ drwxr-xr-x 8 root root 4096 Jun 7 15:27 templates/ -rw-r--r-- 1 root root 182959 Jun 6 01:22 values.yaml

修改镜像源，防止镜像拉取失败

[root@master ~/kube-prometheus-stack]# sed -i s#registry.k8s.io#k8s.m.daocloud.io#g values.yaml [root@master ~/kube-prometheus-stack]# sed -i s#quay.io#quay.m.daocloud.io#g values.yaml [root@master ~/kube-prometheus-stack]# sed -i s#docker.io#docker.m.daocloud.io#g values.yaml [root@master ~/kube-prometheus-stack]# sed -i s#registry.k8s.io#k8s.m.daocloud.io#g charts/kube-state-metrics/values.yaml

配置Grafana

[root@master ~]# vim ~/kube-prometheus-stack/charts/grafana/values.yaml # 修改service，改成NodePort访问 231 service: 232 enabled: true 233 type: NodePort 234 nodePort: 30030 # 配置存储 417 persistence: 418 type: pvc 419 enabled: true # sc的名称，和上面保持一致 420 storageClassName: grafana-sc 421 ## (Optional) Use this to bind the claim to an existing PersistentVolume (PV) by name. 422 volumeName: "" # 修改用户名密码 （可选） [root@master ~]# vim ~/kube-prometheus-stack/values.yaml 1287 adminUser: admin 1288 adminPassword: prom-operator

配置Prometheus

[root@master ~]# vim ~/kube-prometheus-stack/values.yaml 3371 prometheus: 3372 enabled: true # 修改service类型NodePort 3564 type: NodePort # 端口可选配置 3551 nodePort: 30090 # 存储配置 4299 storageSpec: 4300 ## Using PersistentVolumeClaim 4301 ## 4302 volumeClaimTemplate: 4303 spec: 4304 storageClassName: prometheus-sc 4305 accessModes: ["ReadWriteOnce"] 4306 resources: 4307 requests: 4308 storage: 10Gi

创建Realsese

[root@master ~]# helm install prometheus kube-prometheus-stack --debug # 出现以下内容即代表成功 NOTES: kube-prometheus-stack has been installed. Check its status by running: kubectl --namespace default get pods -l "release=prometheus" Get Grafana 'admin' user password by running: kubectl --namespace default get secrets prometheus-grafana -o jsonpath="{.data.admin-password}" | base64 -d ; echo Access Grafana local instance: export POD_NAME=$(kubectl --namespace default get pod -l "app.kubernetes.io/name=grafana,app.kubernetes.io/instance=prometheus" -oname) kubectl --namespace default port-forward $POD_NAME 3000 Visit https://github.com/prometheus-operator/kube-prometheus for instructions on how to create & configure Alertmanager and Prometheus instances using the Operator.

查看创建的资源

# 查看Pod [root@master ~]# kubectl get po NAME READY STATUS RESTARTS AGE alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2 Running 0 70s prometheus-grafana-55cbbf54b7-lmhnd 3/3 Running 0 70s prometheus-kube-prometheus-operator-847fd659bc-scp4w 1/1 Running 0 70s prometheus-kube-state-metrics-5fb66759db-nb242 1/1 Running 0 70s prometheus-prometheus-kube-prometheus-prometheus-0 2/2 Running 0 70s prometheus-prometheus-node-exporter-89xt7 1/1 Running 0 70s prometheus-prometheus-node-exporter-cn8s4 1/1 Running 0 70s prometheus-prometheus-node-exporter-llqgx 1/1 Running 0 70s # 查看svc [root@master ~]# kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE alertmanager-operated ClusterIP None <none> 9093/TCP,9094/TCP,9094/UDP 5m kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 5m prometheus-grafana NodePort 10.96.1.173 <none> 80:30030/TCP 5m prometheus-kube-prometheus-alertmanager ClusterIP 10.96.3.151 <none> 9093/TCP,8080/TCP 5m prometheus-kube-prometheus-operator ClusterIP 10.96.2.62 <none> 443/TCP 5m prometheus-kube-prometheus-prometheus NodePort 10.96.0.114 <none> 9090:30090/TCP,8080:31659/TCP 5m prometheus-kube-state-metrics ClusterIP 10.96.1.88 <none> 8080/TCP 5m prometheus-operated ClusterIP None <none> 9090/TCP 5m prometheus-prometheus-node-exporter ClusterIP 10.96.0.191 <none> 9100/TCP 5m

访问测试

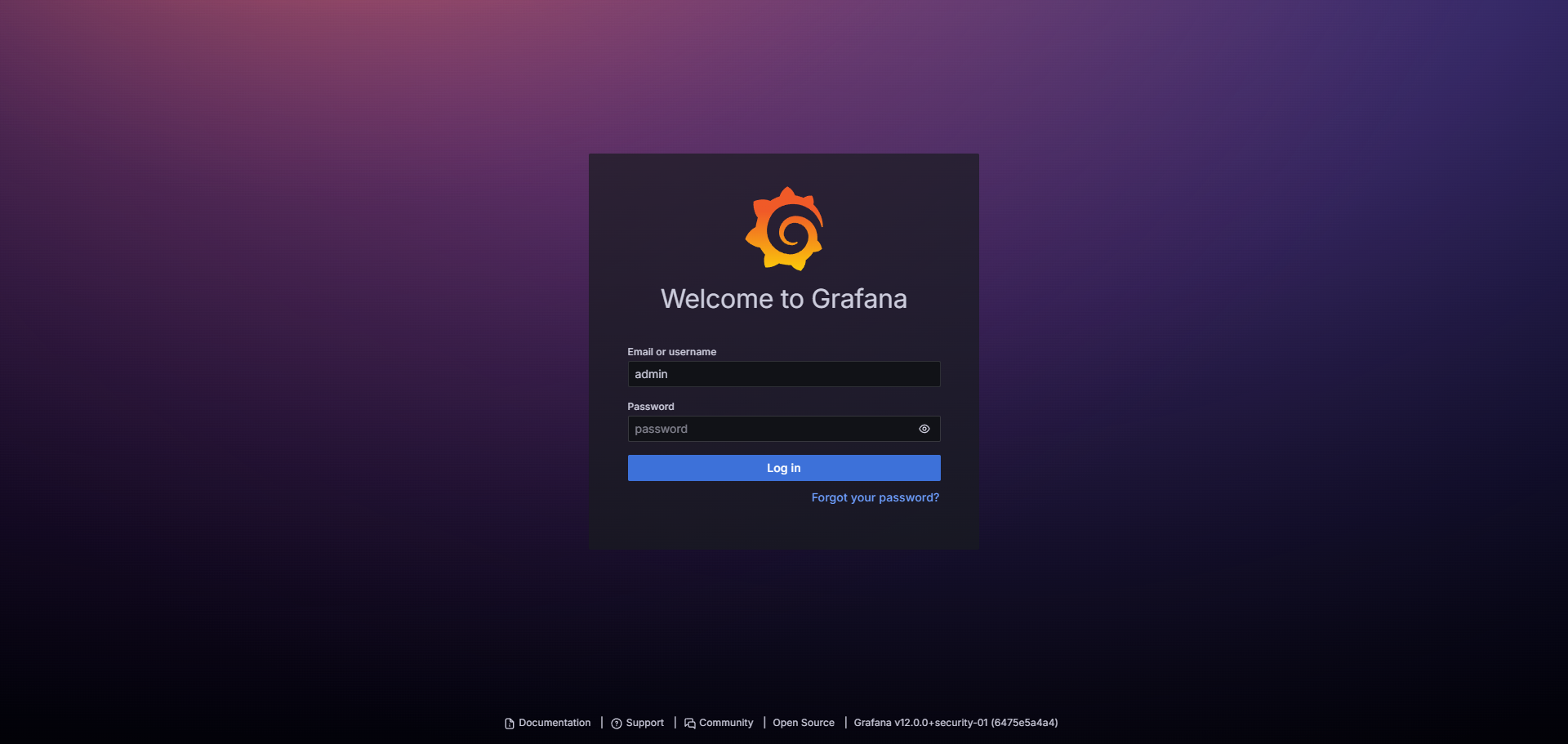

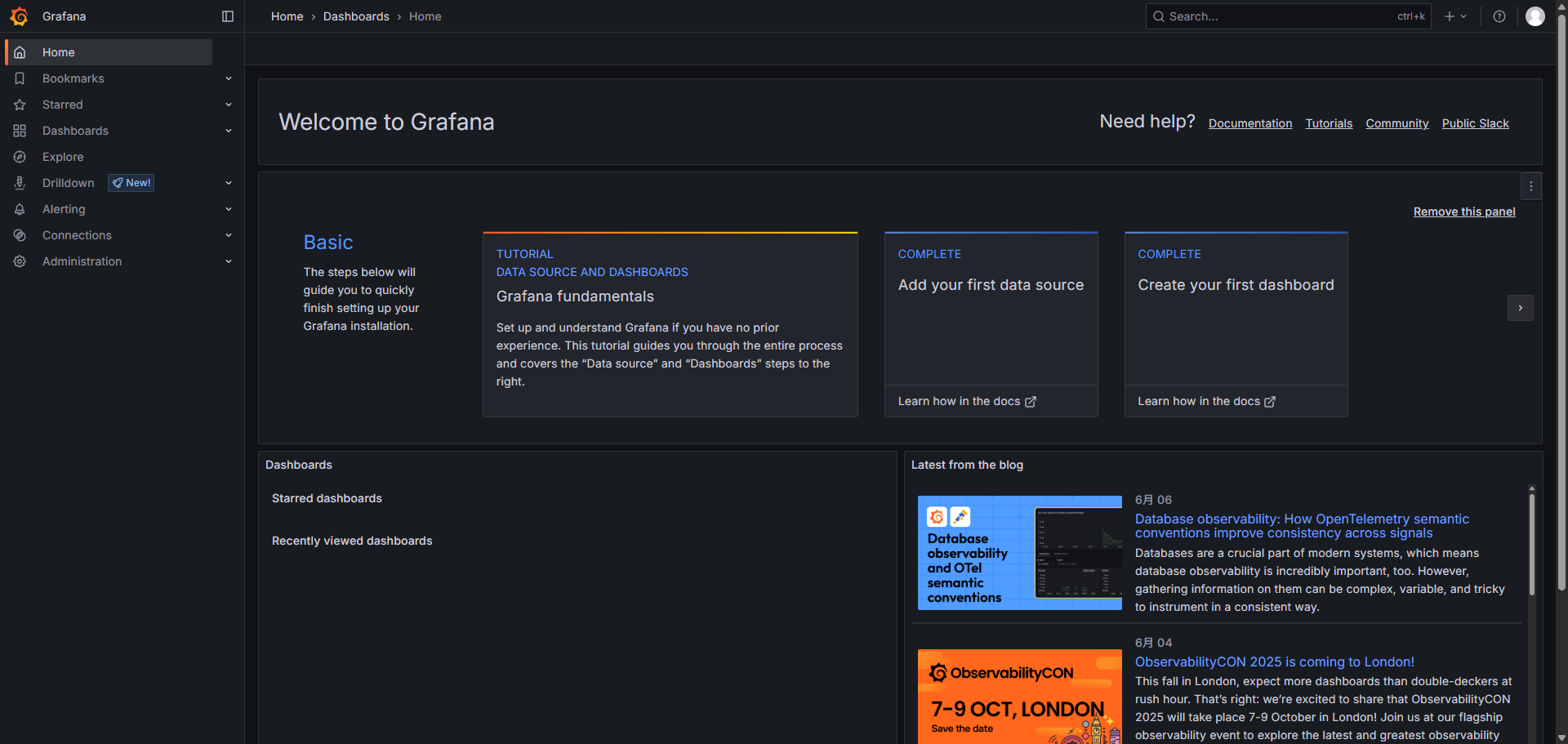

访问Grafana

http://10.0.0.30:30030/

• 用户名：admin
• 密码：prom-operator

用户名和密码是上面配置的

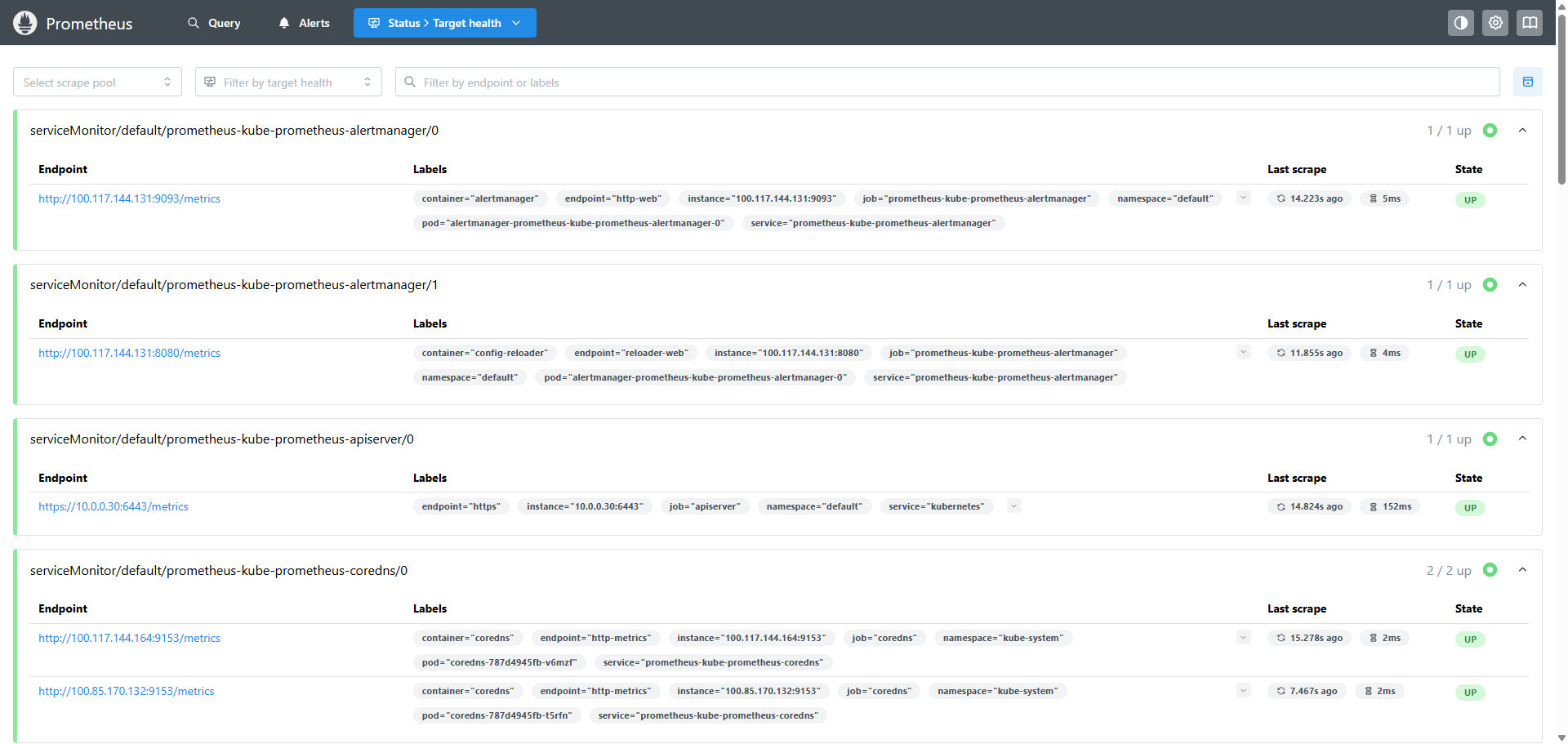

访问Prometheus

http://10.0.0.30:30090/targets

kube-prometheus-stack监控应用程序

kube-prometheus-stack通过PodMonitor和ServiceMonitor对象来监视示例应用程序的目标

参考这篇文章：https://github.com/prometheus-operator/prometheus-operator/blob/main/Documentation/developer/getting-started.md

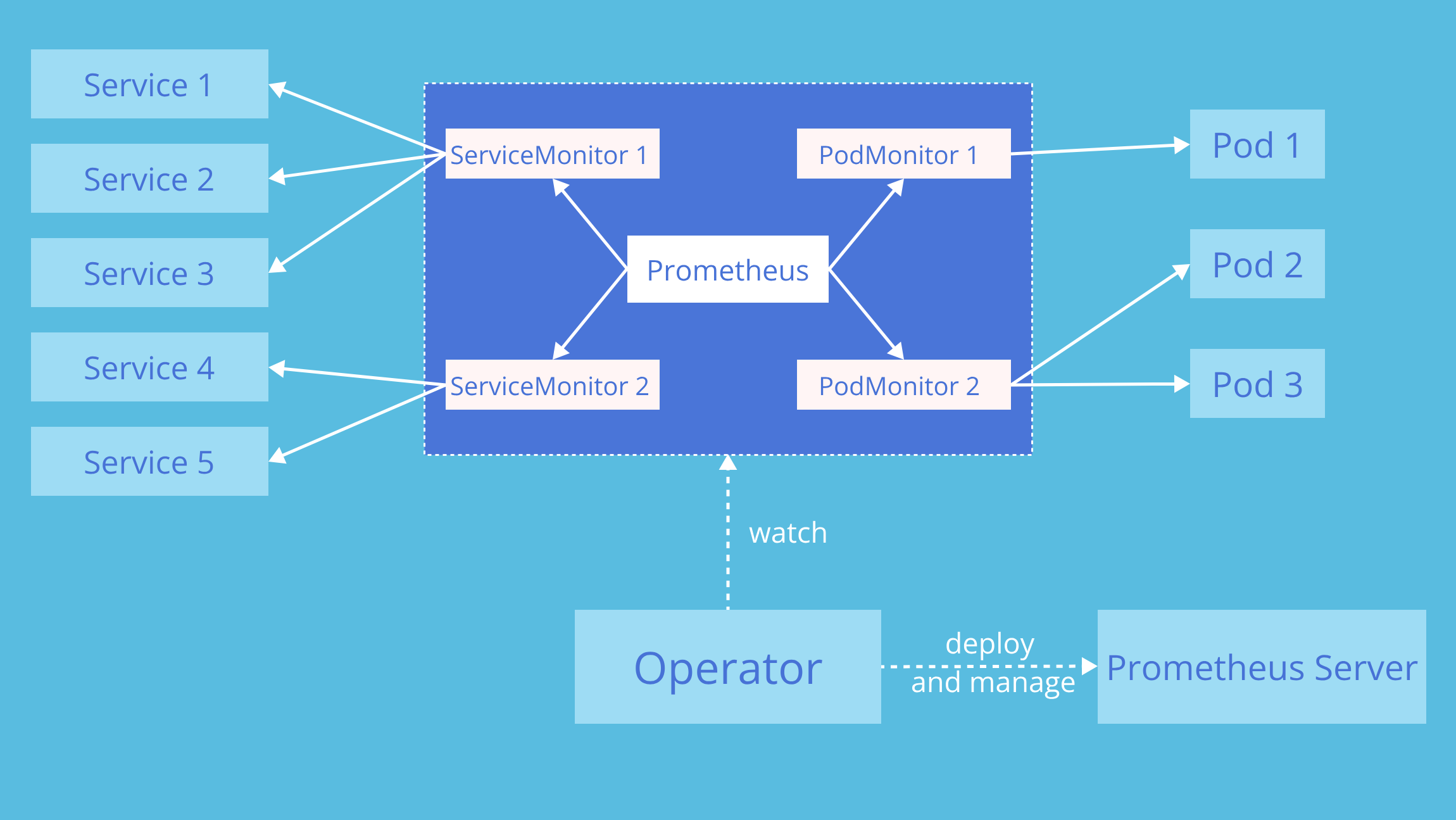

架构图

通过ServiceMonitor监控应用程序

示例：

省略，这块有时间补齐，可以先看官方文档

通过PodMonitor监控应用程序

示例：

省略，这块有时间补齐，可以先看官方文档
